Description

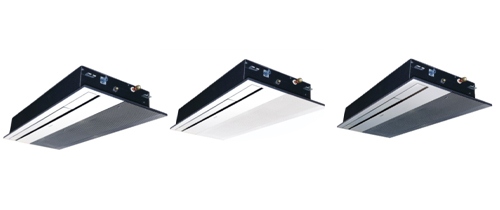

Single Flow Cassette Cooling Only – 3 Star Inverter R-32 (FKCAQ-Series)
| Nominal Capacity | TR | 1.5 | 2.0 | |
| Model | Indoor unit | FKCAQ50AV16 | FKCAQ71AV16 | |
| Outdoor unit | RZVFQ50ARV16 | RZVFQ71ARV16 | ||
| Remote | Wireless | Optional | BRC91A157 | |
| Signal Receiver Unit -Model Number | BRC63AV | |||
| Wired | Optional | BRC1E63 | ||
| Panel Code | Model Number (Color) | BYKQ63AHW (SurfaceColor:White/BaseColor:DarkGrey) BYKQ63AHS (SurfaceColor:Silver/BaseColor:DarkGrey) BYKQ63AW (SurfaceColor:White/BaseColor:White) |
||
| Power supply | V/Hz/ph | 1 Phase, 230 V, 50 Hz | 1 Phase, 230 V, 50 Hz | |
| Cooling capacity -Rated (min ~max) | kW | 5.0 (1.8 ̴5) | 7.0 (2.06 ̴7) | |
| Power consumption | Cooling-Rated | kW | 1.65 | 2.32 |
| Annual Power Consumption | kWh | 943.39 | 1338.34 | |
| ISEER / Stars | Wh/Wh | 4.10/3 Star | 4.10/3 Star | |
| Indoor unit | ||||
| Airflow rate (H/HM/M/ML/L) | m3/min | 12.3/11.6/10.7/10.3/9.8 | 18/16.6/15.3/13.9/12.5 | |
| cfm | 436/410/379/364/348 | 635/587/540/491/443 | ||
| Sound level (H/HM/M/ML/L) | dB(A) | 38/36/35/34/33 | 48/46/44/42/40 | |
| Dimensions (HXWXD) | Unit | mm | 145 x 1210 x 523 | |
| Panel | mm | 41x1390x595 | ||
| Machine weight | Unit | kg | 20 | |
| Panel | kg | 6.6 | ||
| Drain | mm | VP25 (I.D. ⌀ 25, O.D. ⌀ 32) | ||
| Outdoor unit | ||||
| Compressor | Type | Hermetically Sealed Swing Type | ||
| Motor output | kW | 0.92 | 1.2 | |
| Refrigerant | R32 | |||
| Refrigerant charge | kg | 0.98 | 1.04 | |
| Sound level | Cooling | dB(A) | 54 | 54 |
| Dimensions (HXWXD) | mm | 595x845x300 | ||
| Machine weight | kg | 31 | 39 | |
| Certified operation range | °CDB | 21 to 50 | 21 to 50 | |
| Piping connections | Liquid (Flare) | mm | 6.35 | 6.35 |
| Gas (Flare) | mm | 12.7 | 15.88 | |
| Max. interunit piping length | m | 20 | 20 | |
| Max. installation level difference | m | 15 | 15 | |
